Ampacoll Komprimax M

Multifunctional tapes

Sealed connection of doors and windows in solid, wood and metal constructions.

Multifunctional joint sealing strips for economical window installation and component connections.

Item no.	Roll size	Joint width	Box contents
7640115538055	53 mm × 8 m	6 – 15 mm	12 rolls = 96 m
7640115538086	53 mm × 6 m	10 – 20 mm	12 rolls = 72 m
7640115538116	63 mm × 8 m	6 – 15 mm	10 rolls = 80 m
7640115538147	63 mm × 6 m	10 – 20 mm	10 rolls = 60 m
*7640115538178	63 mm × 4 m	15 – 30 mm	10 rolls = 40 m
7640115538208	73 mm × 8 m	6 – 15 mm	8 rolls = 64 m
7640115538239	73 mm × 6 m	10 – 20 mm	8 rolls = 48 m
*7640115538260	73 mm × 4 m	15 – 30 mm	8 rolls = 32 m
7640115538291	83 mm × 8 m	6 – 15 mm	8 rolls = 64 m
7640115538321	83 mm × 6 m	10 – 20 mm	8 rolls = 48 m
*7640115538352	83 mm × 4 m	15 – 30 mm	8 rolls = 32 m
*7640115538383	93 mm × 6 m	10 – 20 mm	6 rolls = 36 m
*Delivery time and MOQ on request

Property	Value	Standard
Stress group	MF 1
Storage time	12 months
Unit weight	about 85 kg/m3
	≥ 1050 Pa
Operating temperature for product	from – 5 °C
Temperature resistance	– 20 °C to + 80 °C
Building material class	B1

Technical data sheet: Ampacoll Komprimax M, Precompressed multifunctional tape

Certificate EC1 plus: Ampacoll Komprimax M, pre-compressed multifunctional tape

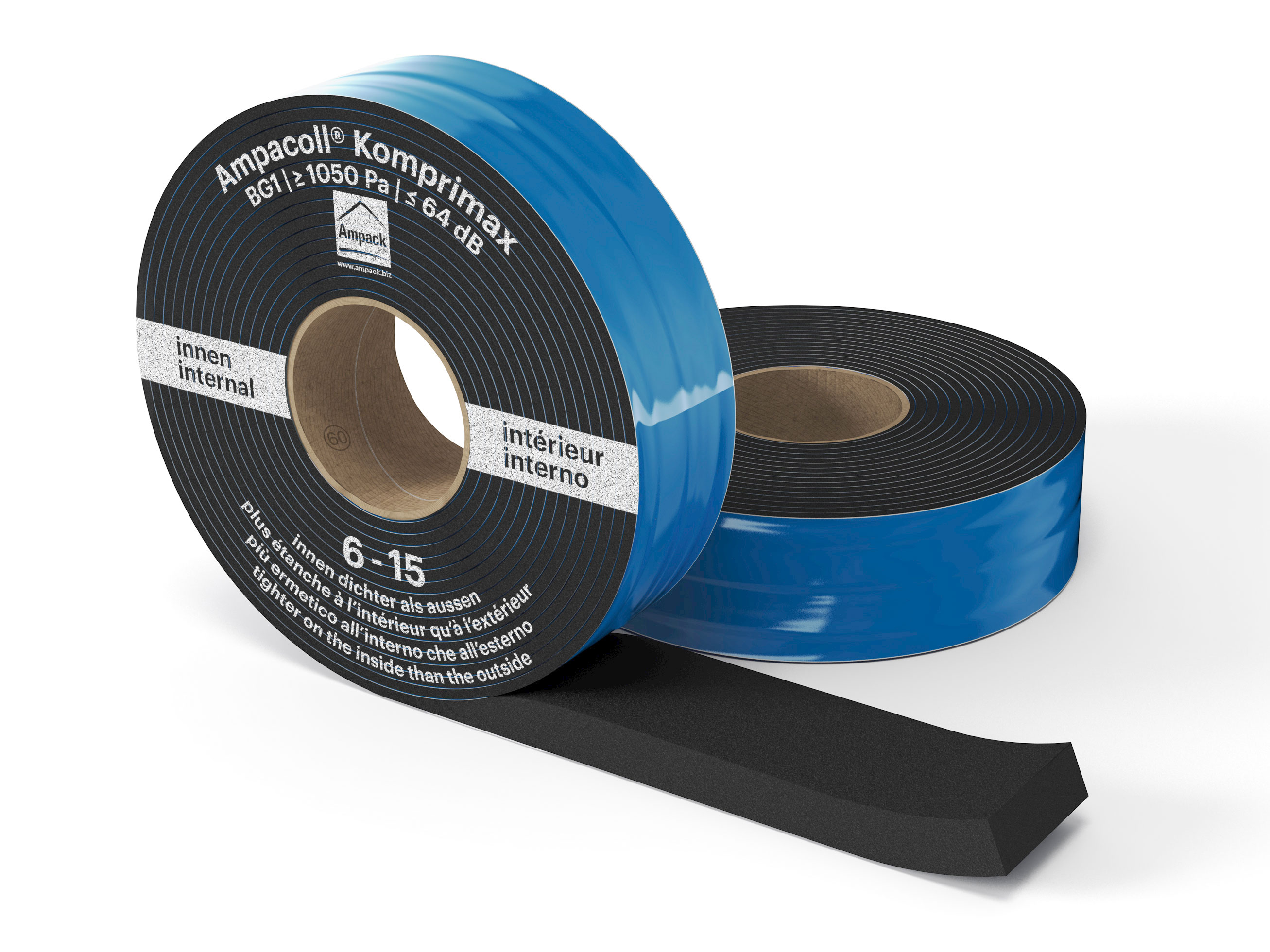

	Product photo: Ampacoll Komprimax M 60/6-15	Product photo: Ampacoll Komprimax M 60/6-15, pre-compressed multifunctional tape

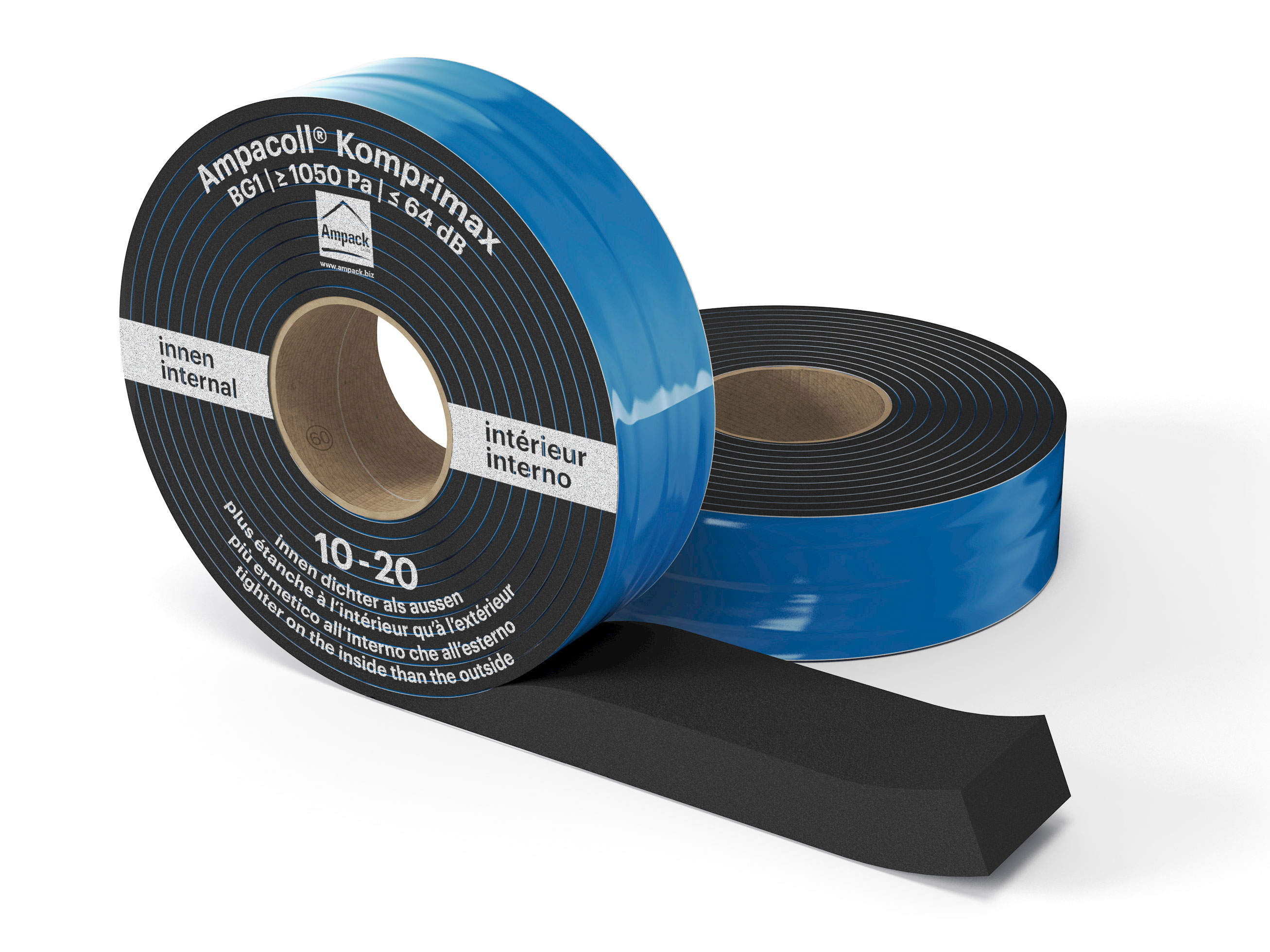

	Product photo: Ampacoll Komprimax M 60/10-20	Product photo: Ampacoll Komprimax M 60/10-20, pre-compressed multifunctional tape

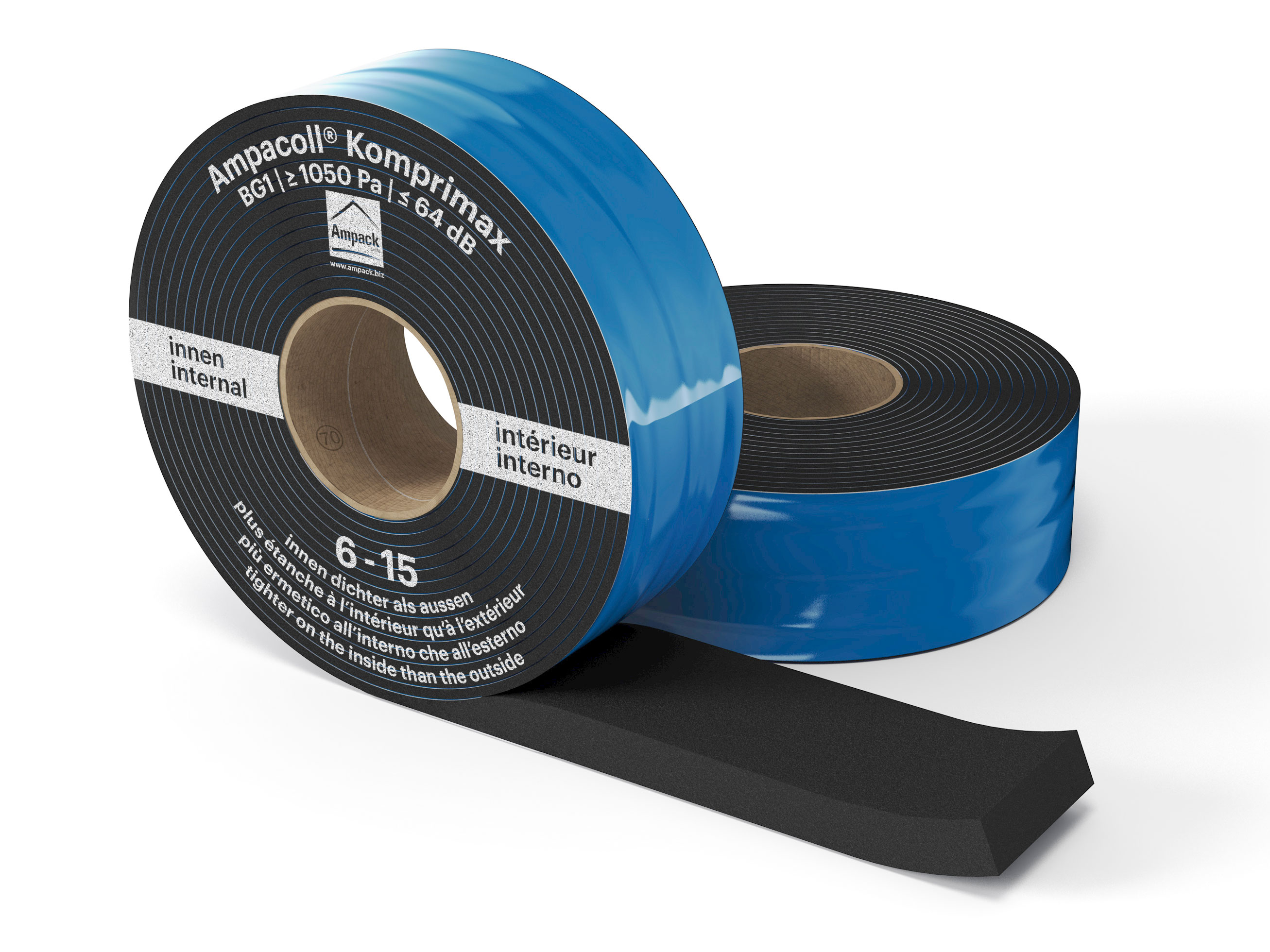

	Product photo: Ampacoll Komprimax M 70/6-15	Product photo: Ampacoll Komprimax M 70/6-15, pre-compressed multifunctional tape
	Product photo: Ampacoll Komprimax M 70/10-20	Product photo: Ampacoll Komprimax M 70/10-20, pre-compressed multifunctional tape
	Product photo: Ampacoll Komprimax M 70/15-30	Product photo: Ampacoll Komprimax M 70/15-30, pre-compressed multifunctional tape

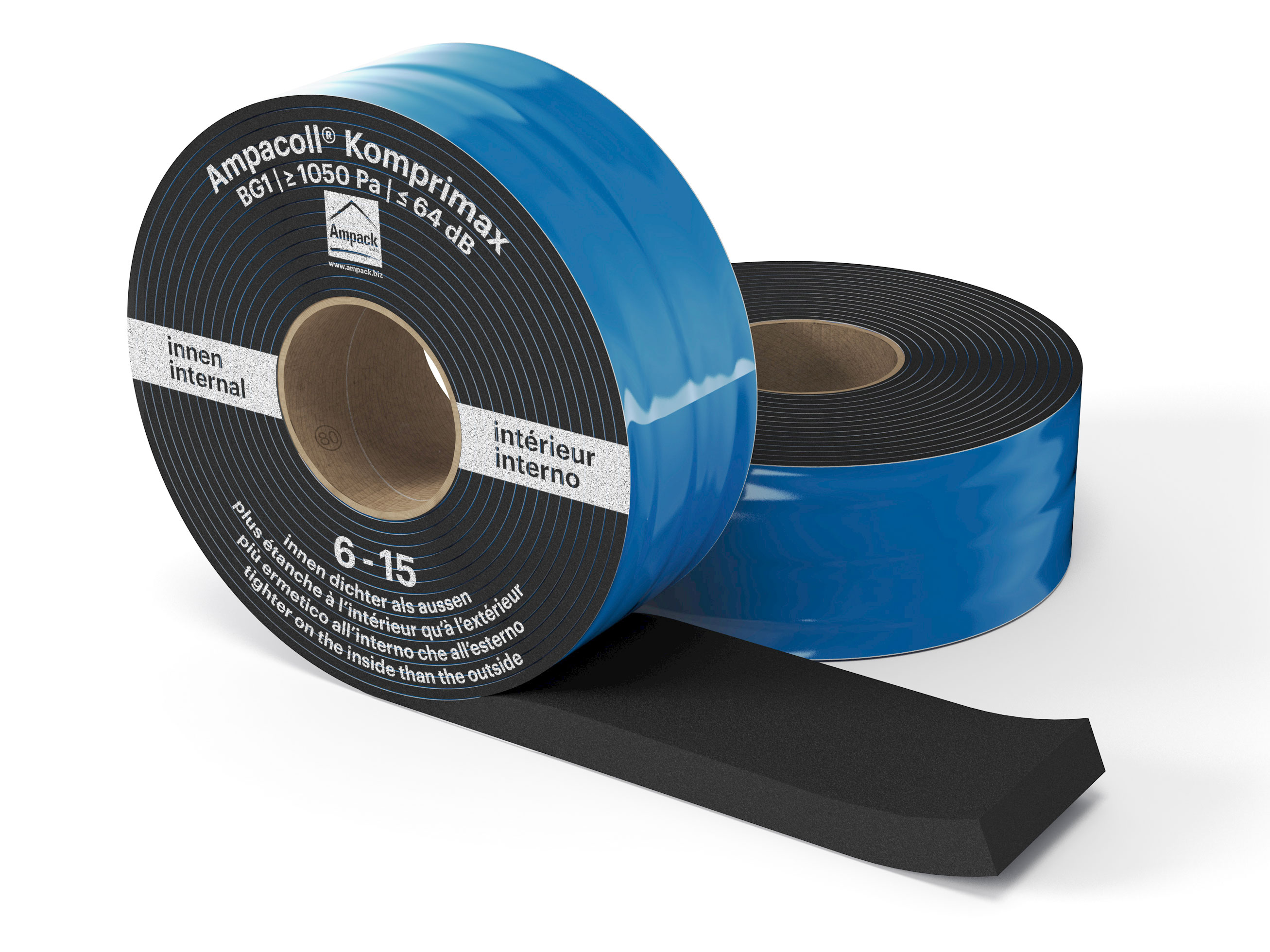

	Product photo: Ampacoll Komprimax M 80/6-15	Product photo: Ampacoll Komprimax M 80/6-15, pre-compressed multifunctional tape

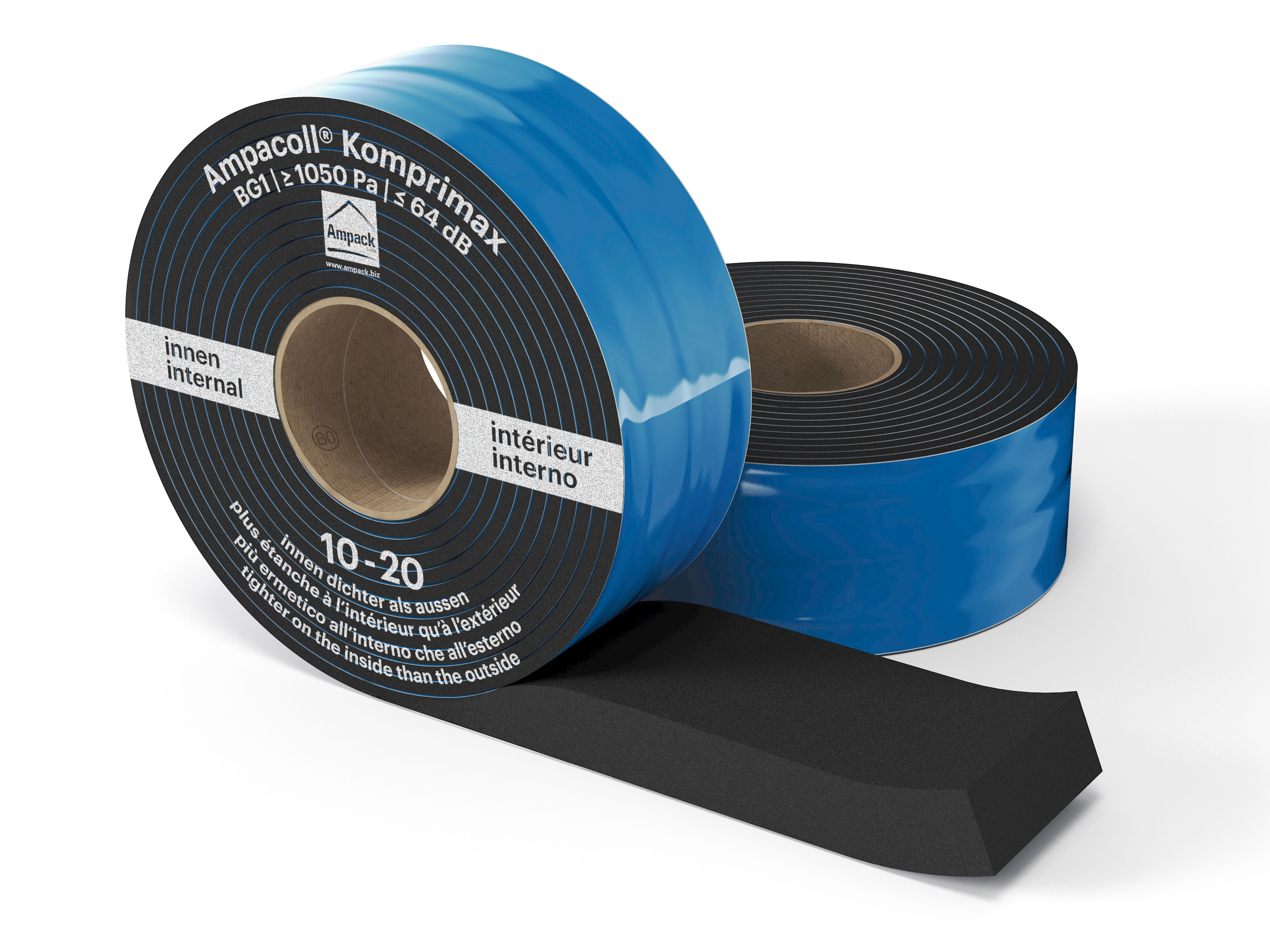

	Product photo: Ampacoll Komprimax M 80/10-20	Product photo: Ampacoll Komprimax M 80/10-20, pre-compressed multifunctional tape

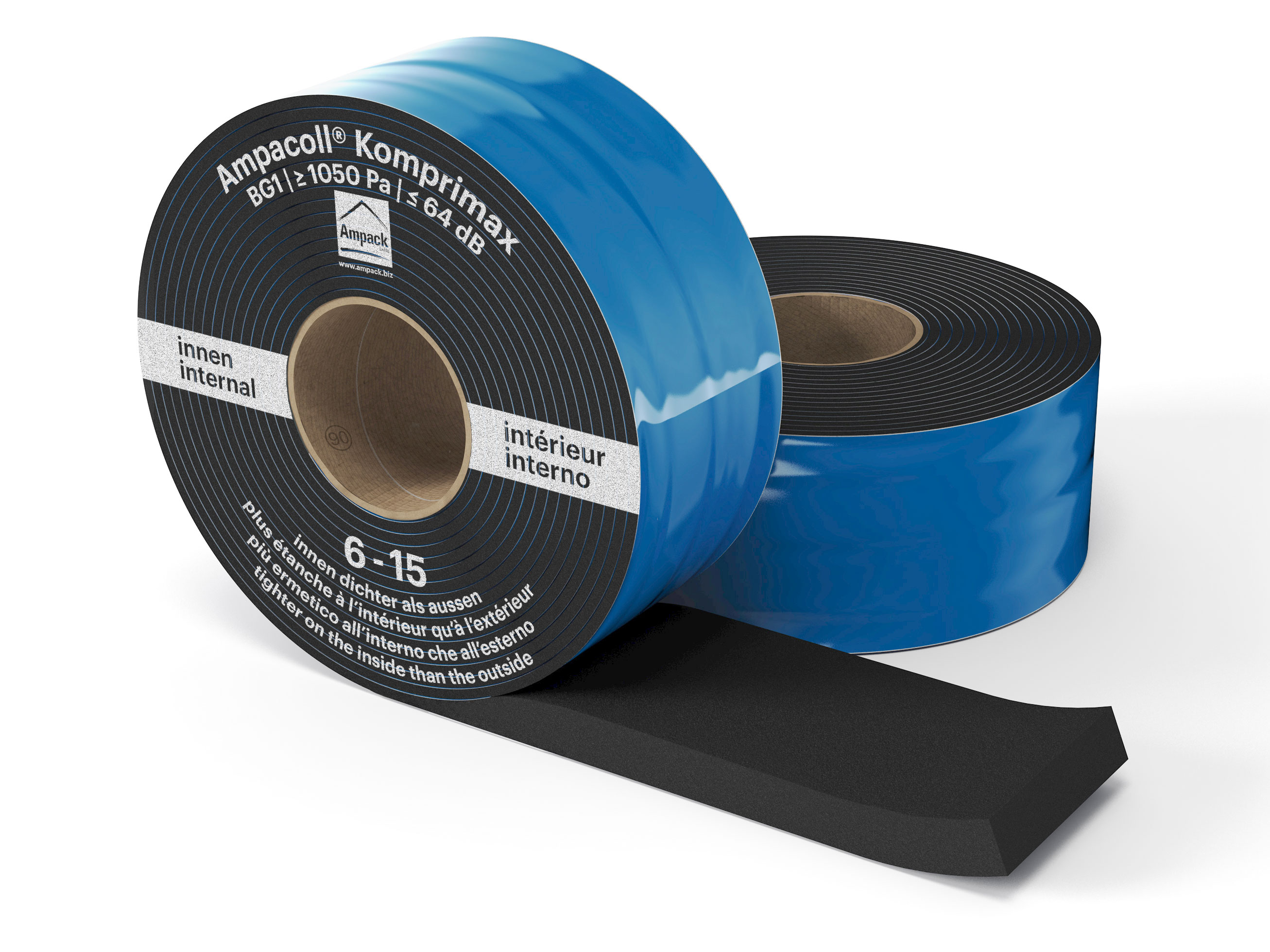

	Product photo: Ampacoll Komprimax M 90/6-15	Product photo: Ampacoll Komprimax M 90/6-15, pre-compressed multifunctional tape

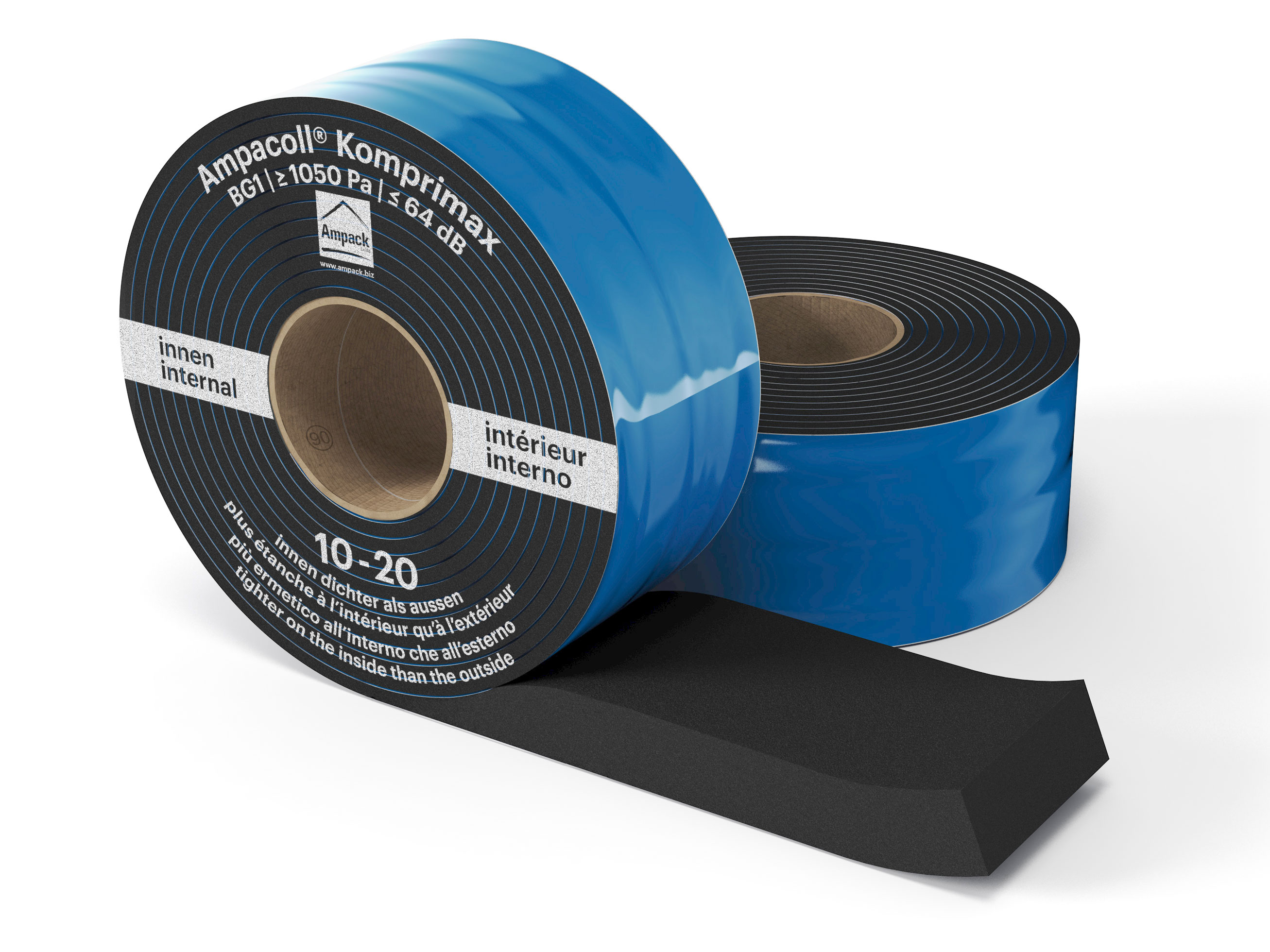

	Product photo: Ampacoll Komprimax M 90/10-20	Product photo: Ampacoll Komprimax M 90/10-20, pre-compressed multifunctional tape

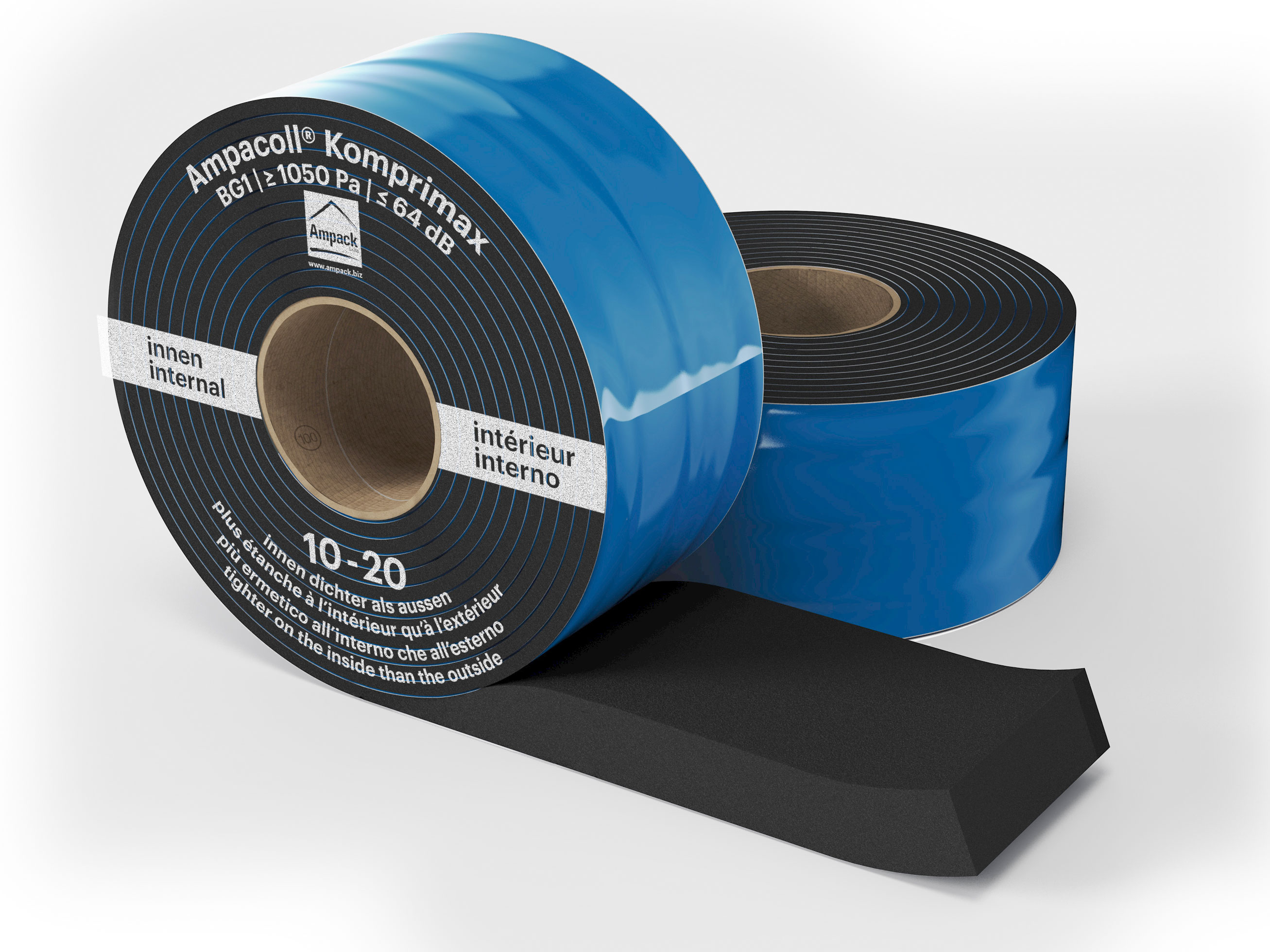

	Product photo: Ampacoll Komprimax M 100/10-20	Product photo: Ampacoll Komprimax M 100/10-20, pre-compressed multifunctional tape
