Ampacoll Fenax
Window connection tape
Fully adhesive on one side with and without split liner.
- Extremely adhesive even at low temperatures
- Adhesive all over
- Moisture variable
- Same tape for both inside and outside use The «tighter inside than outside» requirement is met
- Easy-peel liner
- Safe to plaster over
- No primer required on dry surfaces
- Weather resistant for 12 months
Fully adhesive on one side with and without split liner. This window connection tape is ideal for creating tight
connections of windows or doors after installation.
Einsatzbereich
Sealed connection of doors and windows in solid, wood and metal constructions.
Conditions for the twenty-year premium warranty include registering the building object and the Ampack products used. In addition, our products must be used as part of a system. For further details, please see our General Warranty Conditions.
Fugeneigenschaften nach ift Richtlinie MO-01/1 : 2007 – Abschnitt 5. 18-002878-PR03 (PB-E03-020310-de) Ampacoll Fenax DS
| Article number | Identification | Roll size | Box contents |
|---|---|---|---|
| 7640442092053 | Ampacoll Fenax 15 / 60 | 25 m × 75 mm Liner division: 15 mm, 60 mm | 8 rolls = 200 m |
| 7640442092091 | Ampacoll Fenax 75 | 25 m × 75 mm | 8 rolls = 200 m |
| 7640115537362 | Ampacoll Fenax 15 / 85 | 25 m × 100 mm Liner division: 15 mm, 85 mm | 4 rolls = 100 m |
| 7640115536921 | Ampacoll Fenax 40 / 60 | 25 m × 100 mm Liner division: 40 mm, 60 mm | 4 rolls = 100 m |
| 7640442092060 | Ampacoll Fenax 15 / 135 | 25 m × 150 mm Liner division: 15 mm, 135 mm | 4 rolls = 100 m |
| 7640442091469 | Ampacoll Fenax 15 / 185 | 25 m × 200 mm Liner division: 15 mm, 185 mm | 2 rolls = 50 m |
| Property | Value | Standard |
|---|---|---|
|
Storage |
cool and dry | |
|
Durability |
> 20 years | |
|
Elasticity |
transverse 100% longitudinal 140% | |
|
Operating temperature for product |
– 5 °C to + 40 °C | |
|
Temperature resistance |
– 40 °C to + 100 °C | |
|
Outdoor weathering |
12 months (Central Europe) |
Technical data sheets
|
Technical data sheet: Ampacoll Fenax | Technical data sheet: Ampacoll Fenax, window connection tape, moisture-variable |
Processing tips
|
|
Application tips: Ampacoll Fenax | Application tips: Ampacoll Fenax, vapour edge tape |
Product photos
|

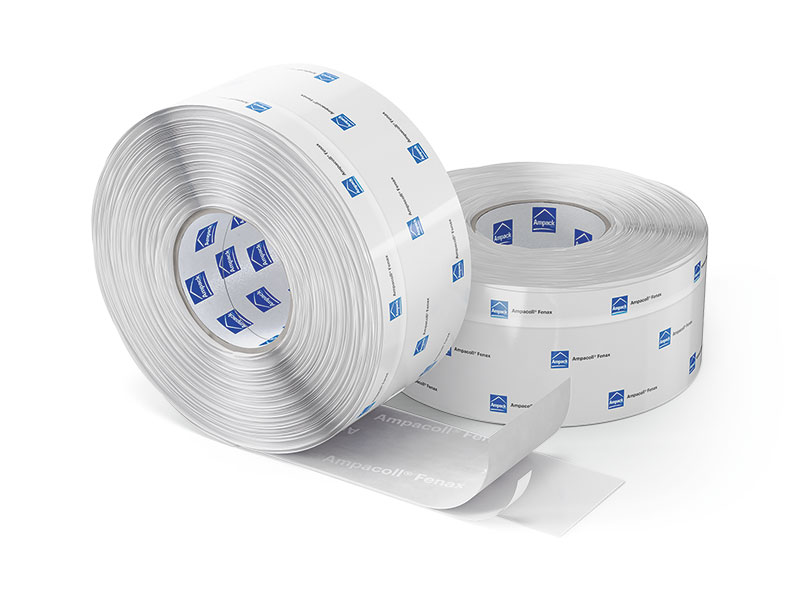

Product photo: Ampacoll Fenax 12/63 | Product photo: Ampacoll Fenax 12/63, window connection tapes, moisture-variable |
|
|

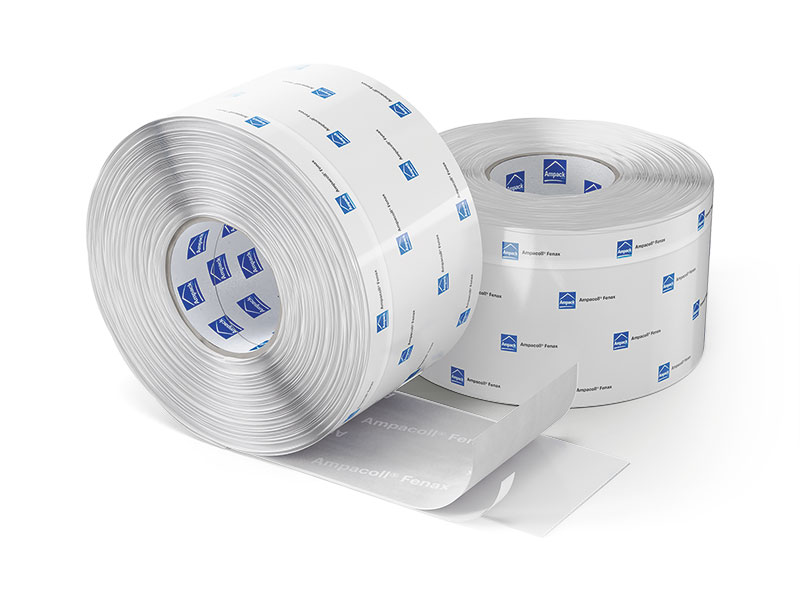

Product photo: Ampacoll Fenax 12/88 | Product photo: Ampacoll Fenax 12/88, window connection tapes, moisture-variable |
|
|

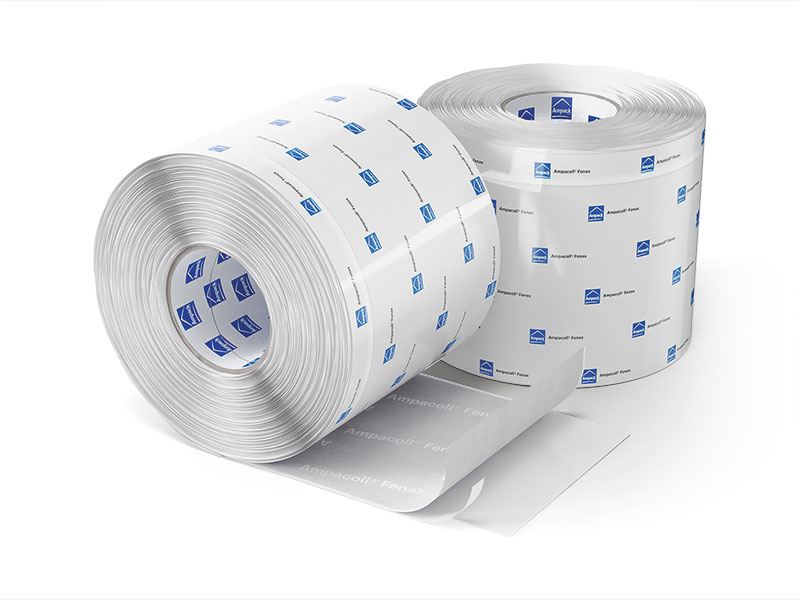

Product photo: Ampacoll Fenax 12/138 | Product photo: Ampacoll Fenax 12/138, window connection tapes, moisture-variable |
|
|
